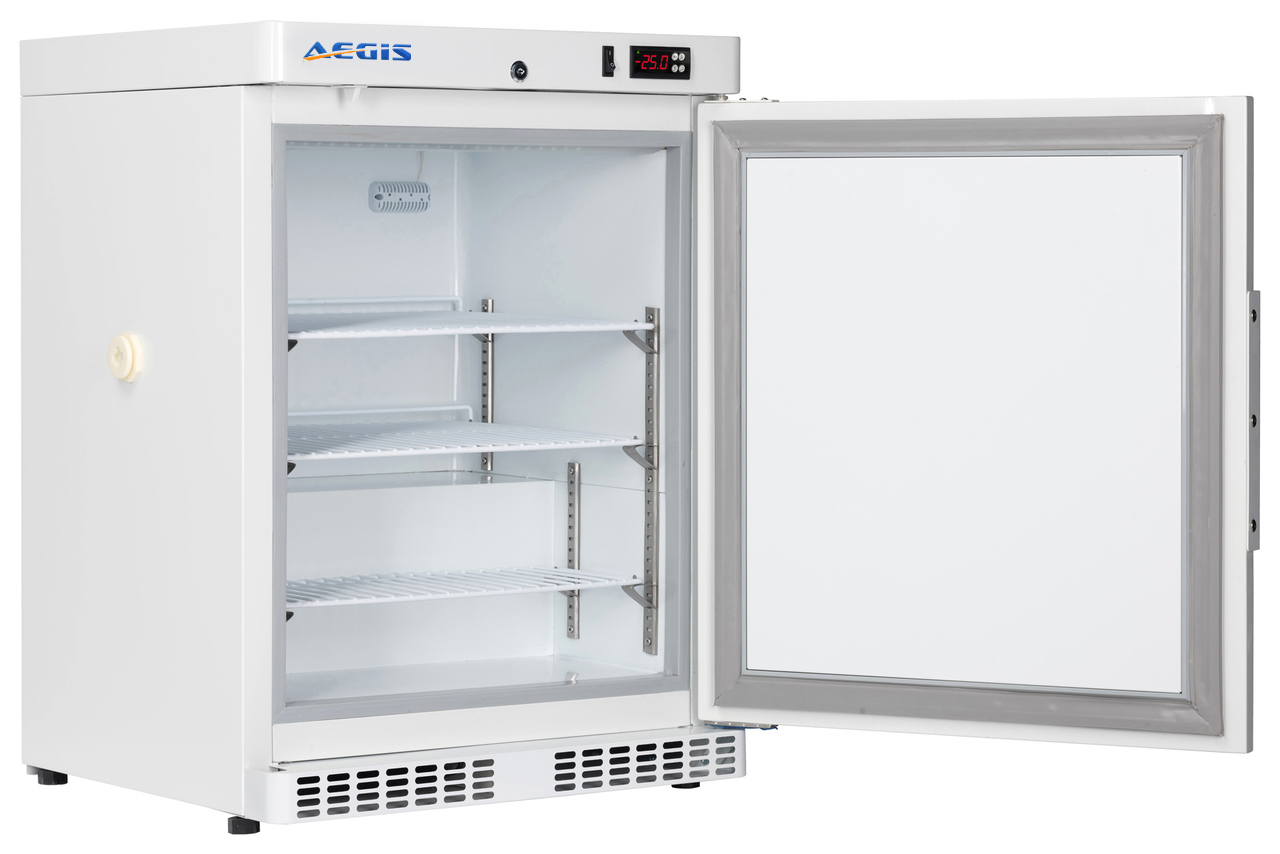

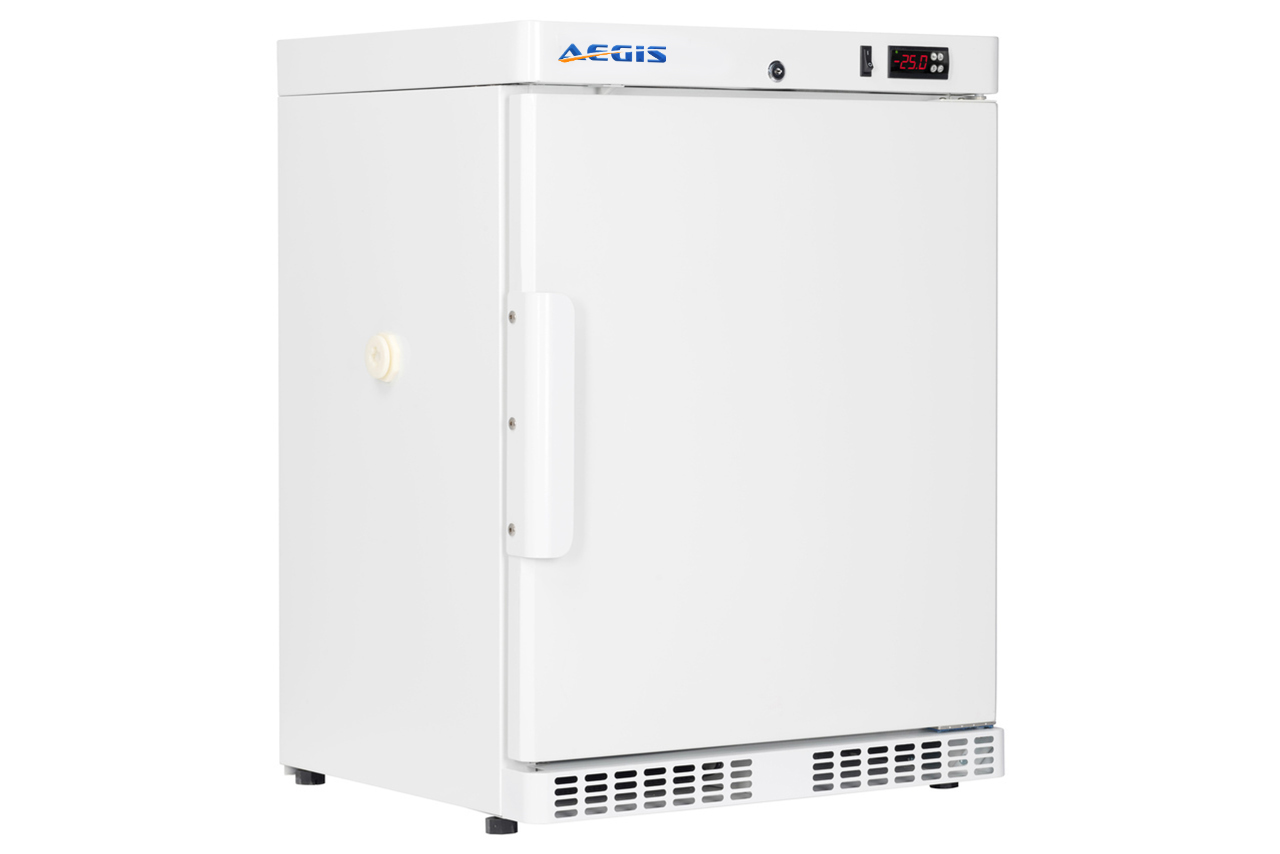

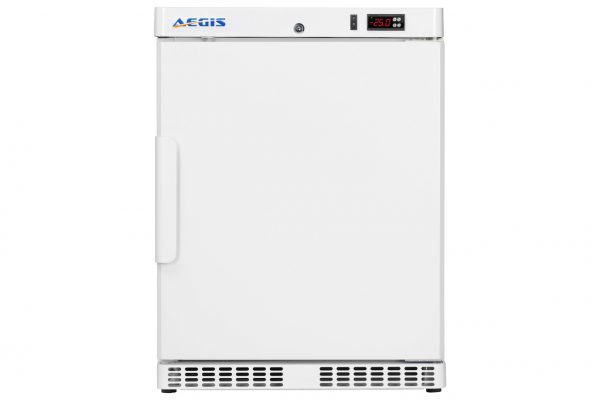

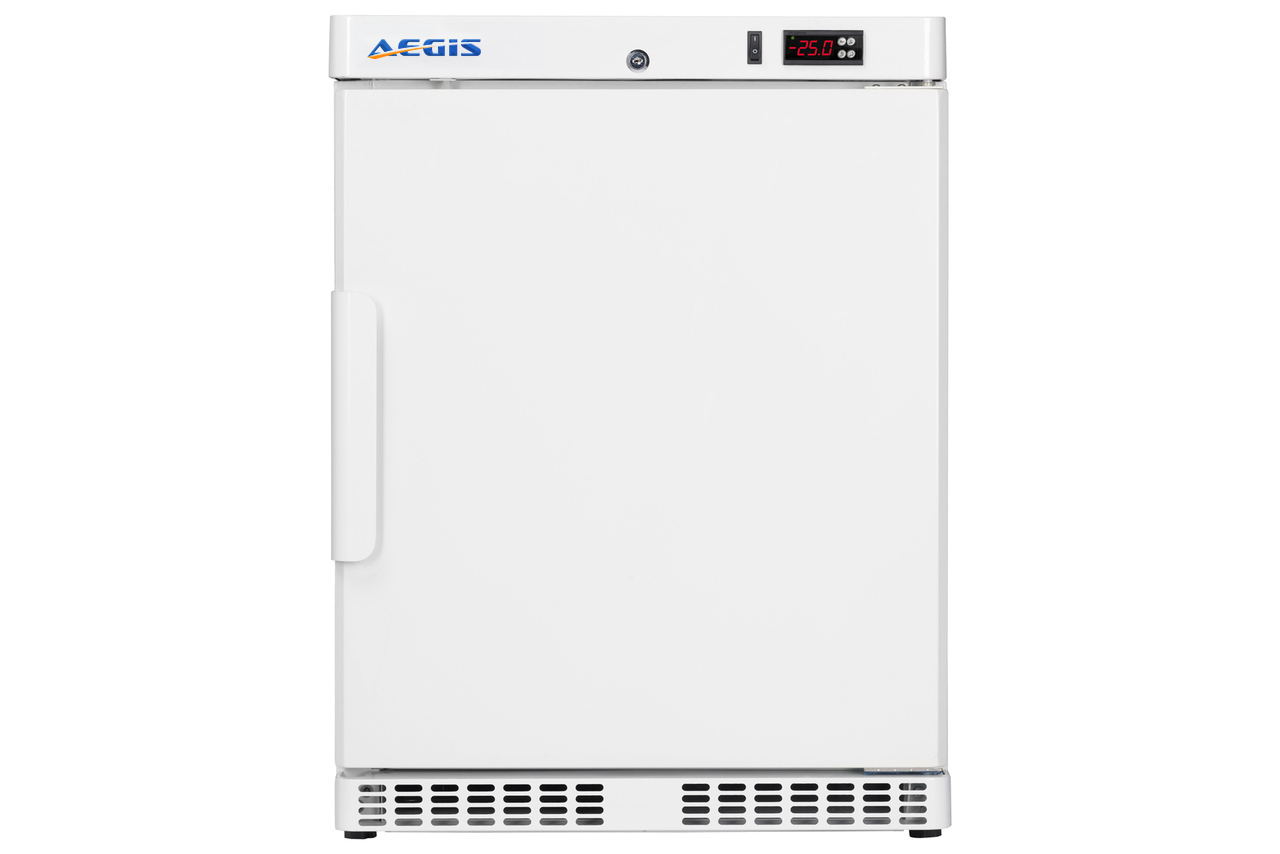

Elite Series : 4 cuft Compact Solid Door Freezer – Series I: EL-F-4K

Elite Series : 4 cuft Compact Solid Door Freezer – Series I: EL-F-4K



    • Microprocessor-controlled system designed for controllable range of -40°C to -86°C for cabinet space with 1°C increment
    • Audible and visual high or low temperature alarms

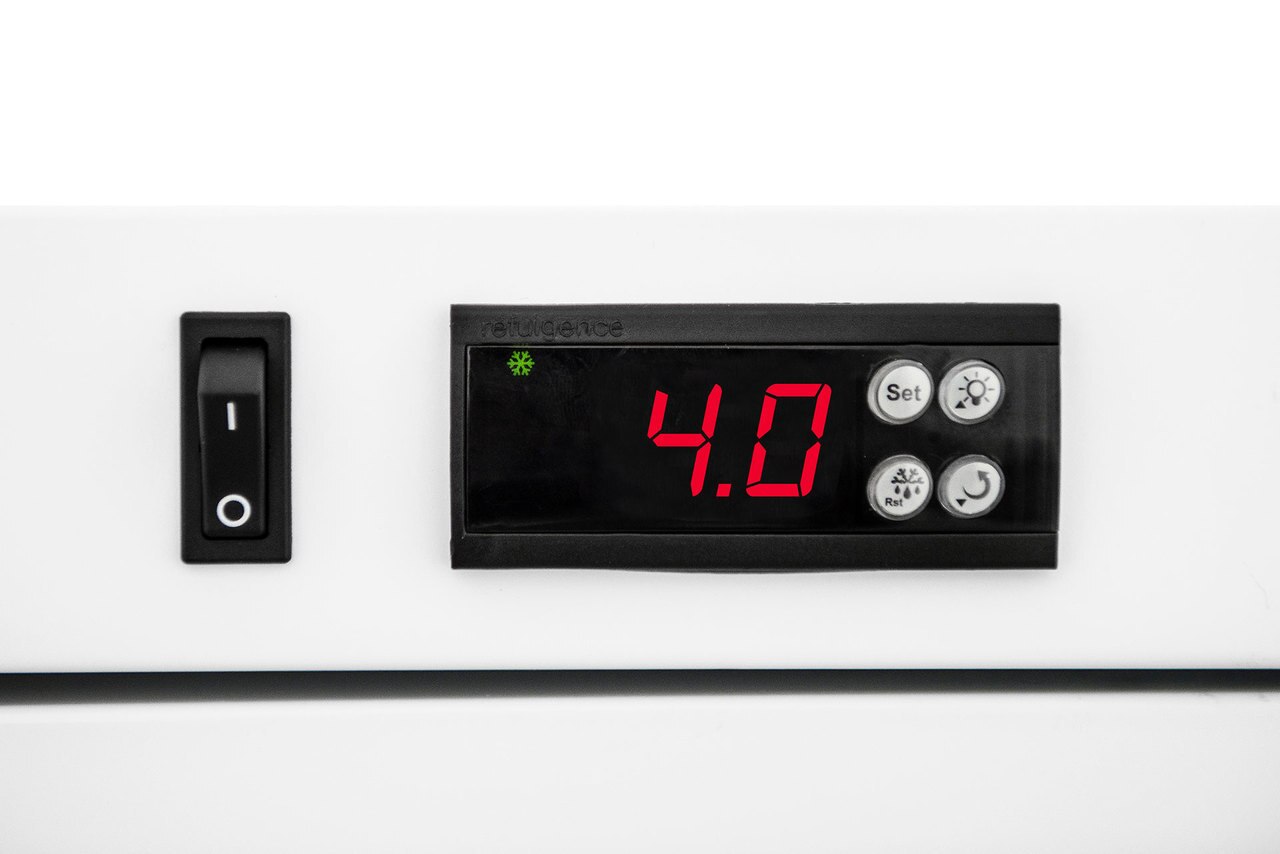

    • Large LED display for cabinet temperature, set temperature, ambient temperature, and input voltage
    • White epoxy-coated wire shelves standard
    • Settable high temperature and low temperature alarms
    • Automatic clean-filter alarm and sensor error alert
    • Adjustable storage shelf height
    • Variable (cycle) defrost
    • Can be connected with network, and remote alarm systems
    • Optional temperature recorder, storage racks and storage boxes

 Request Quote

SKU: EL-F-4K Category: Tags: , ,

Share this product

Description

Field Proven Reliability

  • Refrigeration system designed and manufactured with best known practice, and components with highest possible quality
  • Reliability test performed and passed on all models including aging test on control electronics at 85°C and 85% humidity environment
  • Unique insulated inner door design for four separate storage compartments to minimize frost buildup inside the chamber
  • Specialized control system design for a well-balanced operation of cascade refrigeration system

Safety

  • Equipped with a complete alarm system with optional remote network monitoring system
  • UL and CE certified for application safety
  • Malfunction alarms including high and low temperature, power outage, sensor errors, high voltage and low voltage, clean-filter, and extremely high ambient, door ajar feature standard on DW-86L486/728/828 models
  • Capable of producing two types of alarm outputs: audible buzzer and visible flashing light
  • Multiple built-in system protection features including user-settable protection code for controls, user settable delay to start, voltage compensation system, and protection against extreme high voltages
  • USB port for temperature data downloading
  • Safety padlock compatible on outer door

Installation and Application

  • Wide range operating voltage system from 185V to 260V designed to allow units installed in areas with poor voltage condition
  • Suitable for 10°C to 32°C Ambient temperature
  • Input voltage and ambient temperature shown simultaneously for ease of monitoring environmental conditions
  • Freezer design for global installations
  • Robust door latch designed for secure door closing and compact casters for ease of maneuvering

Low Sound Level

  • Specialized refrigeration system design using whisper quiet fan and compressors
  • Freezer chassis designed to absorb vibration and sound

Energy Saving

  • Unique door seal and breaker design for the minimum loss of cold temperature during a door opening
  • High performance VIP insulation panels to minimize cabinet heat gain and to improve temperature stability
  • Patented cabinet insulation system designed for optimal performance of cold storage temperature and minimal frost buildup
  • Condensator fan intelligently start-stop to reduce power consumption
  • Unique design of independent insulated inner door systems for independent access of storage space to provide the maximum protection of stored samples and save energy

Warranty Information: 3 years on all parts and 5 years on the compressor.
