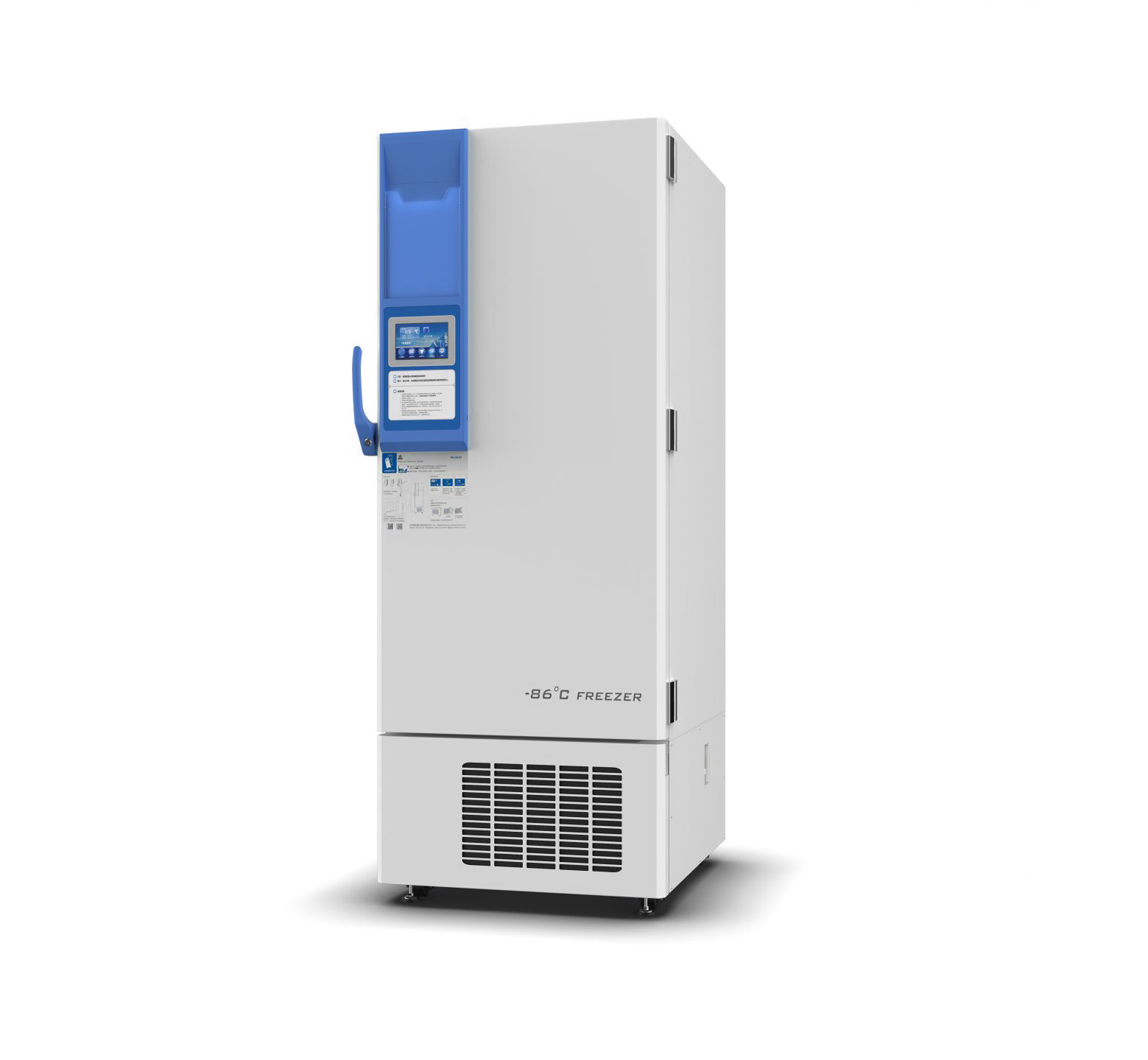

GL-U-14M Glacier Series : -86°C Ultra Low 14 cuft Freezer
Description
| General Specifications | |
| Cabinet Type | Upright |
| Capacity | 398L / 14.05 cu ft |

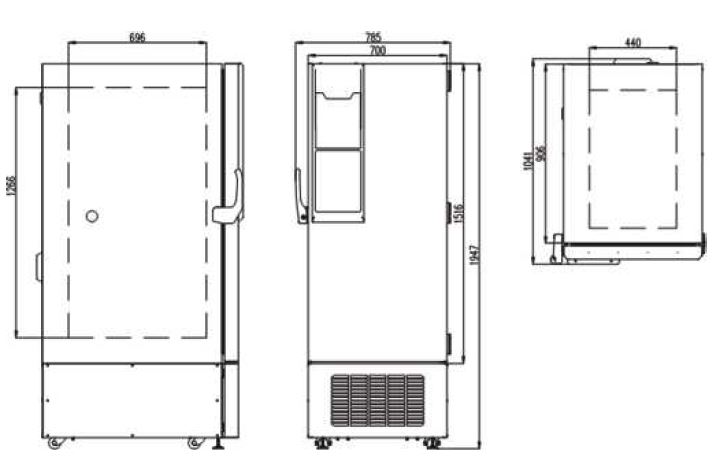

| Internal Size(W*D*H) | 440*696*1266mm 17.32*27.40*49.84in |
| External Size(W*D*H) | 785*1041*1947mm 30.90*40.98*76.65in |
| Package Size(W*D*H) | 890*1165*2145mm 35.03*45.86*84.44in |
| NW/GW(Kgs) | 237/272 |
| Performance | |
| Temperature Range | -40 ~ -86 °C |
| Ambient Temperature | 16 – 32°C |
| Climate Class | N |

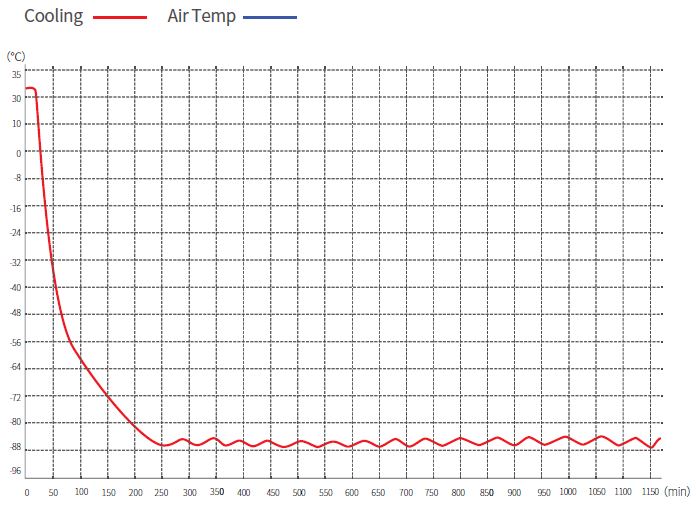

| Cooling Performance | -86 °C |
| Controller | Microprocessor |
| Display | Touch screen |
| Refrigeration | |
| Compressor | 1 |
| Cooling Method | Direct cooling |
| Defrost Mode | Manual |
| Refrigerant | Mixture gas |
| Insulation Thickness(mm) | 130 |
| Construction | |
| External Material | High quality steel plates with spraying |
| Inner Material | Galvanized steel sheet |
| Shelves | 3(stainless steel) |
| Door Lock with Key | Yes |
| External Lock | Yes |
| Access Port | 2pcs. Ø 25 mm |
| Casters | 4+(2 leveling feet) |
| Data Logging/Interval/Recording Time | USB/Record every 1 minute / 365 days |
| Backup Battery | Yes |
| Alarm | |
| Temperature | High/Low temperature,High ambient temperature |
| Electrical | Power failure , Low battery |
| System | Sensor error,Main board communication error,Built-in datalogger USB failure, Condenser cooling failure,Door ajar, Sapmles out of date, System failure |
| Electrical | |
| Power Supply(V/HZ) | 110/60 |
| Rated Current(A) | 14 |
| Options Accessory | |
| System | Chart recorder, CO2 backup system, Printer, Remote alarm contact |
