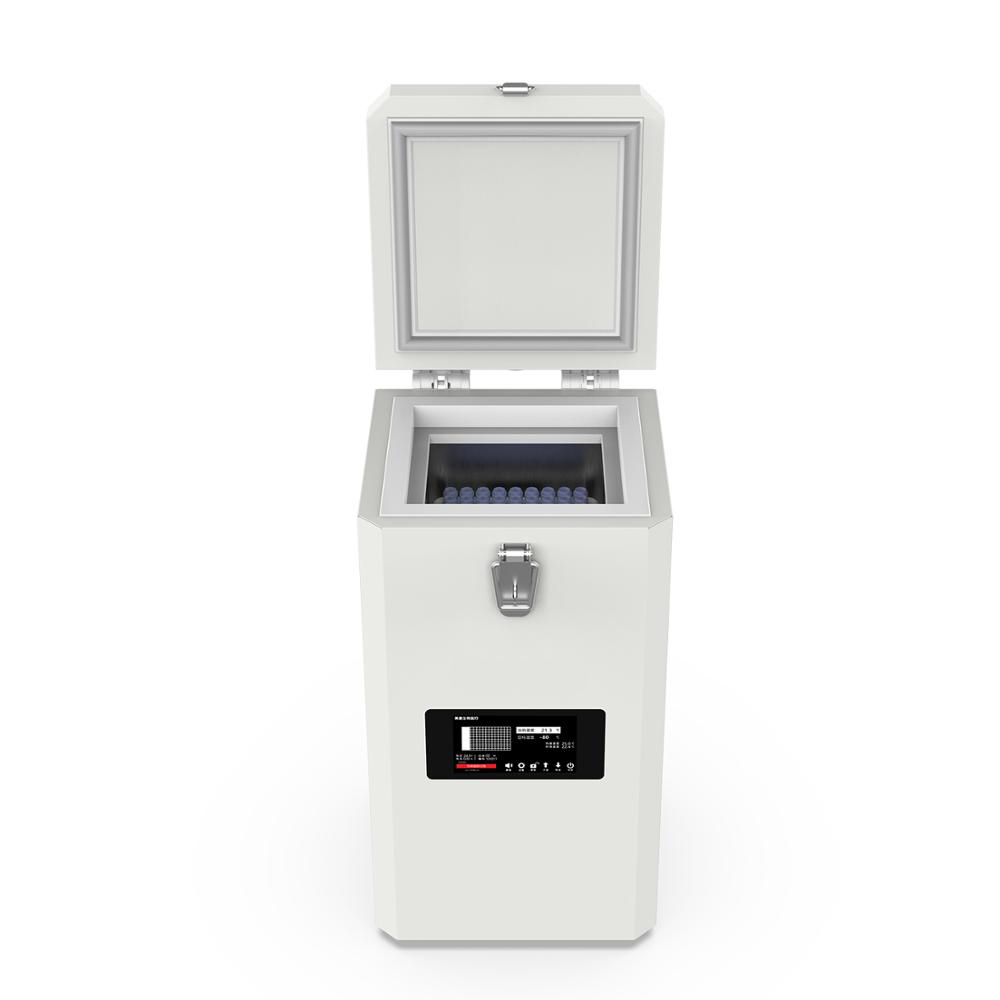

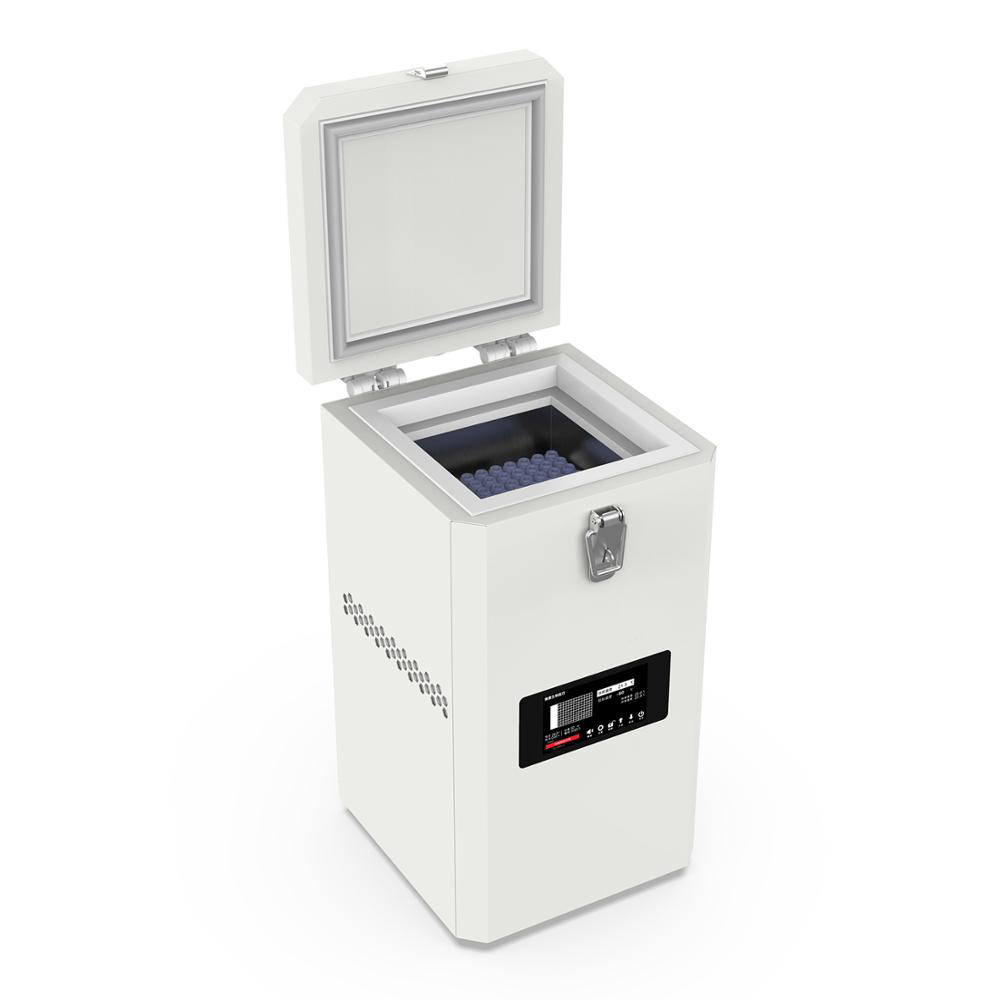

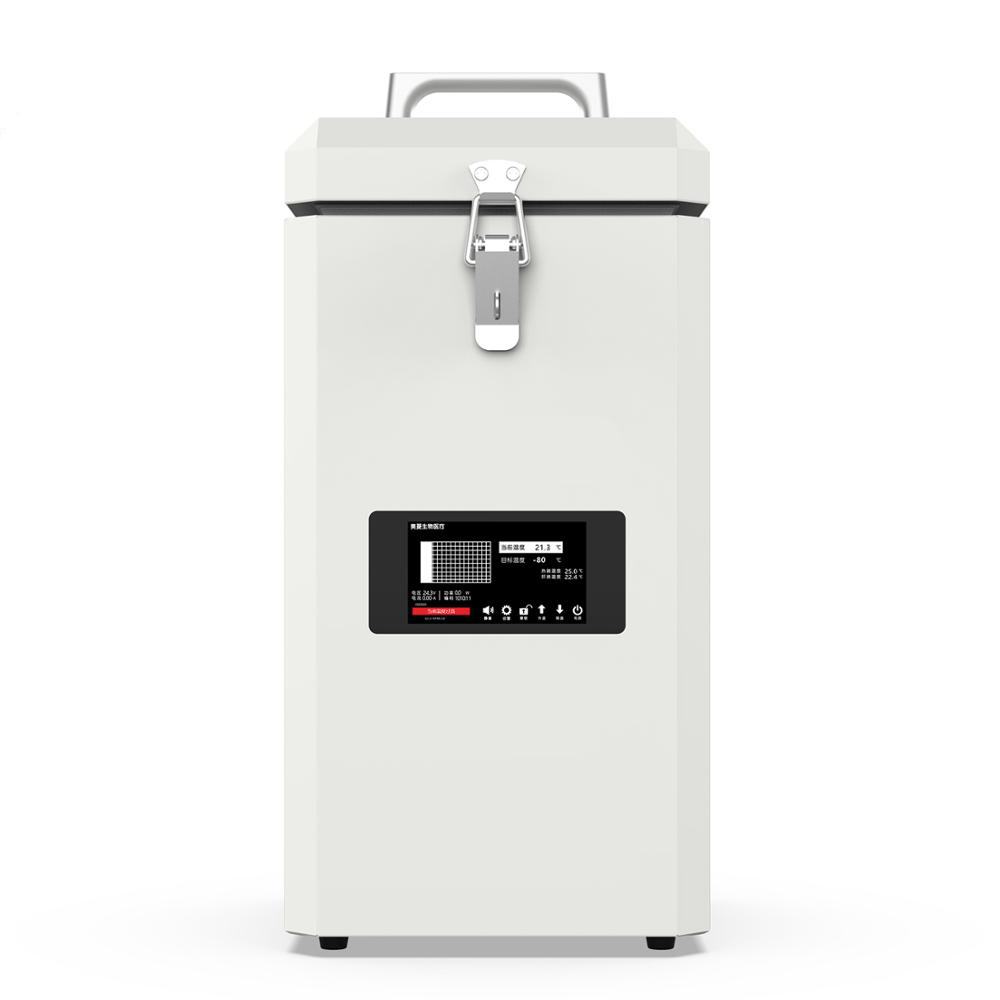

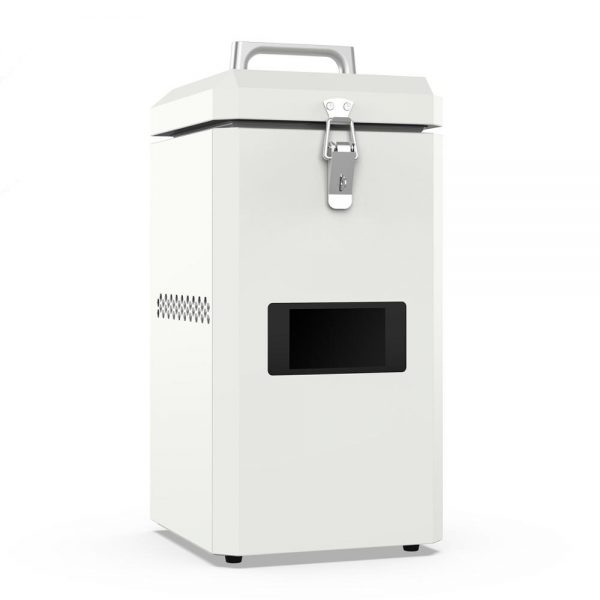

GL-U-1M Glacier Series : -75°C Ultra Low 1 cuft Freezer
Description
| General Specifications | |
| Capacity | 1.8L / 0.0635 cu ft |
| Temp. Range | -40 – -75°C |
| Ambient Temperature | 16 – 32°C |
| Cooling | Direct cooling |
| Display | Digital display |
| Climate Class | N |
| Internal Size(WDH) | 5.98*5.23*3.42in 152*133*87mm |
| External Size(WDH) | 9.64*11.10*19.52in 245*282*496mm |
| Package Size(WDH) | 12.40*15.15*20.86in 315*385*530mm |
| NW/GW(Kgs) | Dec-14 |
| Alarm System | High/low temperature , Sensor fault , Powe outage |
| Power Supply(V/HZ) | DC24V, AC100V-240V/50 |
| Rated Power(W) | 60 |
| Input Power(W) | 80 |
| Current Consumption(KWh/24h) | 2.24 |
| Rated Current(A) | 0.46 |
| External Material | SPCC steel with powder coating |
| Inner Material | EVA |
| External Lock | yes |
