General Specifications | |

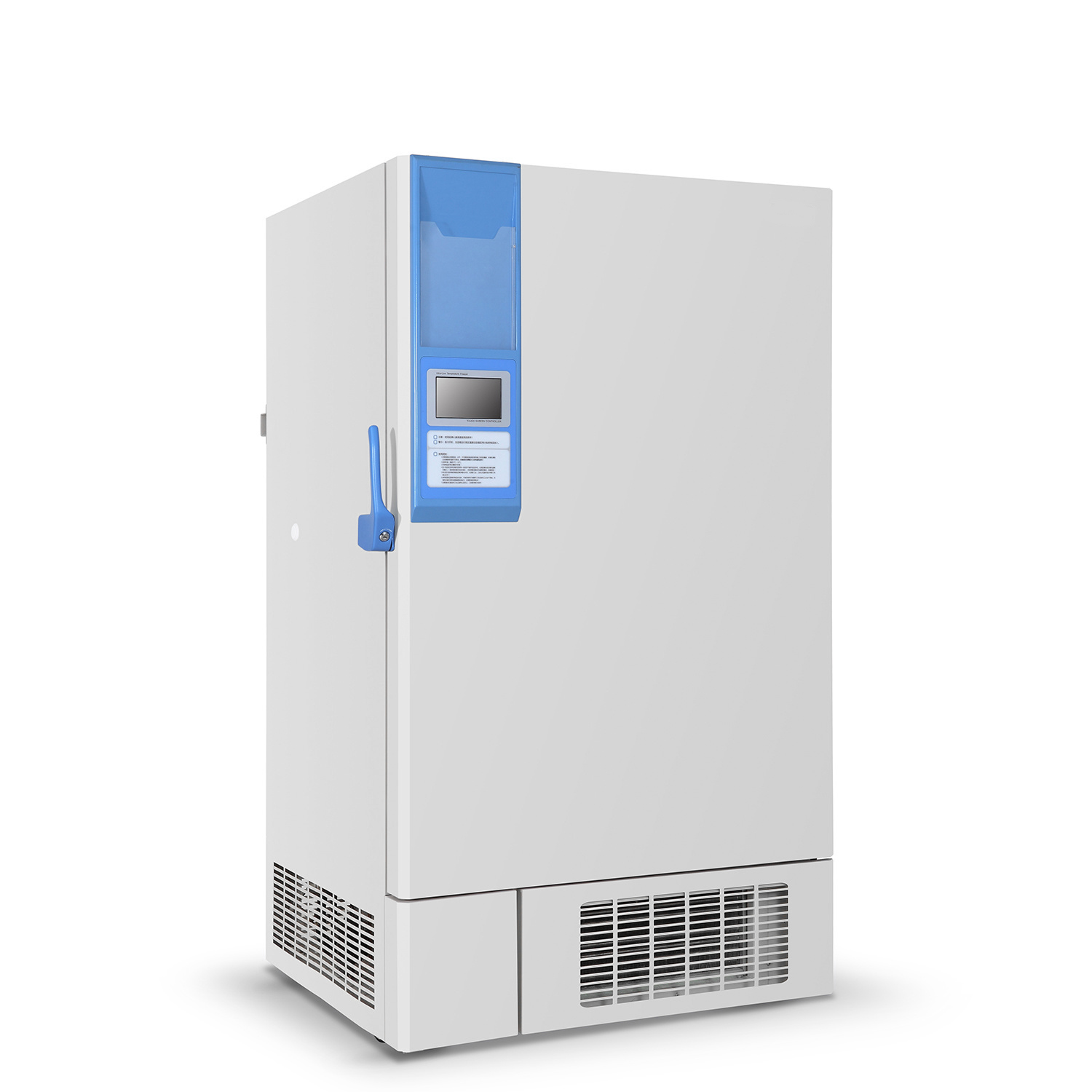

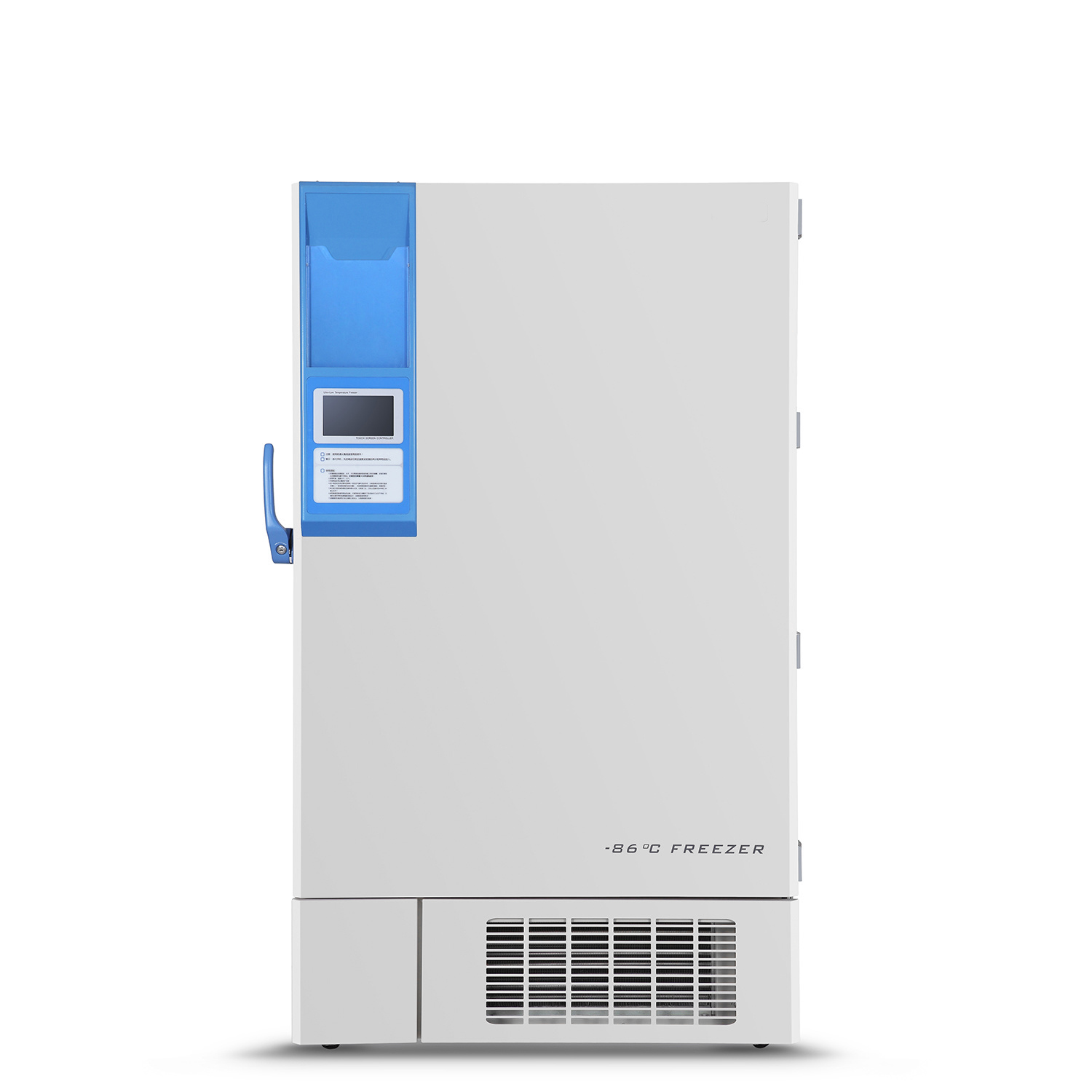

Cabinet Type | Upright |
Capacity | 858L / 30.29 cu ft |

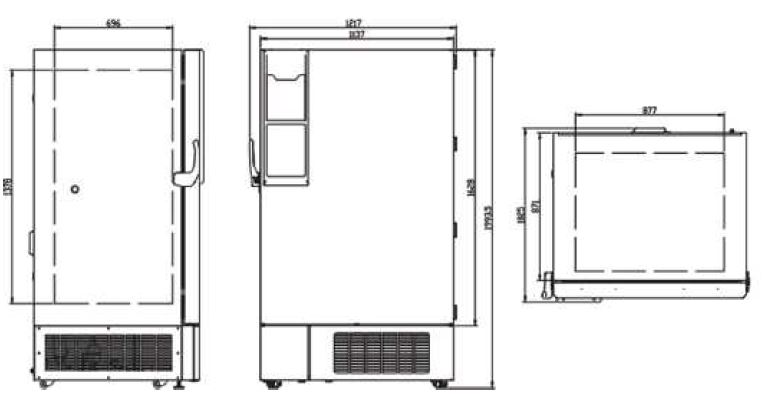

Internal Size(W*D*H) | 877*696*1378mm 34.52*27.40*54.25in |
External Size(W*D*H) | 1217*1025*2005mm 47.91*40.35*78.93in |
Package Size(W*D*H) | 1330*1155*2176mm 52.36*45.47*85.66in |
NW/GW(Kgs) | 390/431 |
Certification | ETL |
Performance | |
Temperature Range | -40 ~ -86 °C |
Ambient Temperature | 16 – 32°C |
Climate Class | N |
Cooling Performance | -86 °C |
Controller | Microprocessor |
Display | Touch screen |
Refrigeration | |
Compressor | 1pc (SECOP brand) |
Cooling Method | Direct cooling |
Defrost Mode | Manual |
Refrigerant | Mixture gas |
Insulation Thickness(mm) | 130 |
Construction | |
External Material | High quality steel plates with spraying |
Inner Material | Galvanized steel sheet |
Shelves | 3(stainless steel) |
Door Lock with Key | Yes |
External Lock | Yes |
Access Port | 3pcs. Ø 25 mm |
Casters | 4+(2 leveling feet) |
Data Logging/Interval/Recording Time | USB/Record every 1 minute / 365 days |
Backup Battery | Yes |
Alarm | |
Temperature | High/Low temperature, High ambient temperature |
Electrical | Power failure |
System | Sensor error, Built-in datalogger USB failure, Main board communication error, Condenser cooling failure, |
Door ajar, Sapmles out of date, System failure | |
Electrical | |
Power Supply(V/HZ) | 220/60 |
Rated Current(A) | 12 |
Options Accessory | |
System | Chart recorder, CO2 backup system, Printer. Remote alarm contact |
The countertop blanket warmers for labor and delivery rooms, ICU and NICU
• Glass window to view contents inside
• Energy-efficient coated glass door
• Standard lights, UV lamps, with circulation fan
• Digital temperature limiter
Air Cooling, Auto defrost Better cabinet temperature uniformity, Auto defrost |
|
Adjustable Shelves The shelves are adjustable to any height and satify different requirements. |
|
Five Alarm Functions High/low temperature, Power failure, Door ajar, Sensor error , Low battery |
Key Features
Temperature Range(℃) | 2~8 |
---|---|
Controller | Microprocessor |
Display | LED |
Power Supply(V/Hz) | 220-240/50 115/60 |
Power(W) | 135 75 |
Electrical Current(A) | 1.03 /1.11 |
Capacity(L/Cu.Ft) | 105L / 3.70 cu ft |
Net/Gross Weight(approx) | 42/52(kg) |
Interior Dimensions(W*D*H) | 410*650*420mm 16.14*25.59*16.53in |
Exterior Dimensions(W*D*H) | 510*885*560mm 20.07*34.84*22.04in |
Container load (20’/40’/40’H) | 48/96/144 |
Sentinel Next RTD probe with Dry Contact for ultra-low freezers and liquid nitrogen chambers. Used in tissue and blood storage, pharmaceutical and other healthcare applications
Probe Length & Diameter Stainless probe: 25mm, Ø 4mm (1”, Ø 0.16”)
Cable Length: 183cm (6ft)
Measurement Range: -200°C to +150°C (-328°F to +302°F)
Accuracy: ±0.2°C (±0.4°F) at 25°C (77°F)
Response Time: (to reach 90%) In water, with stirring: <10sec
Display Resolution: 0.1°C (0.1°F)
Optional DI (Digital Input): dry contact available
Door Contact
Circuit type Open loop
Operation gap ½”(13mm)
Color: White
Terminals: Screw-type
Mounting Tabs: Yes
Case: High-impact ABS plastic
Contacts: Deactivated rhodium on gold under-plating
Contact rating: 0.1A@100VDC (max) 1.0A@10VDC (max) 10W (max)
Temperature: -15°~160°F (-25°~70°C)
Switch cycles: 50 Million (0.1mA@5VDC)
Switch Dimensions: 21/2′′x9/16′′x1/2′′ (63.5x14x13mm)
Magnet Dimensions: 21/2′′x1/2′′x1/2′′ (63.5x13x13mm)
Magnet Type: Ferrite
Air Cooling, Auto defrost Better cabinet temperature uniformity, Auto defrost |
|
Adjustable Shelves The shelves are adjustable to any height and satify different requirements. |
|
Five Alarm Functions High/low temperature, Power failure, Door ajar, Sensor error , Low battery |
Key Features
Probe Dimensions: 7.6cm x 9.5cm x 3.8cm (3” x 3.75” x 1.5”)
Cable Length: 100cm (~39”)
Operating Principle: Non-dispersive infrared (NDIR)
Measurement range: CO2 0 to 30%vol(CO2)
Measurement RH: 0 to 100% (non-condensing)
Measurement range: -40 to 60 °C
Accuracy: ± 0,25vol ± 3% of reading
Operation temperature range: 0 to 50 °C
Operation humidity range: 0 to 95% RH (non-condensing)
Display Resolution: 0.1°C (0.1°F)
