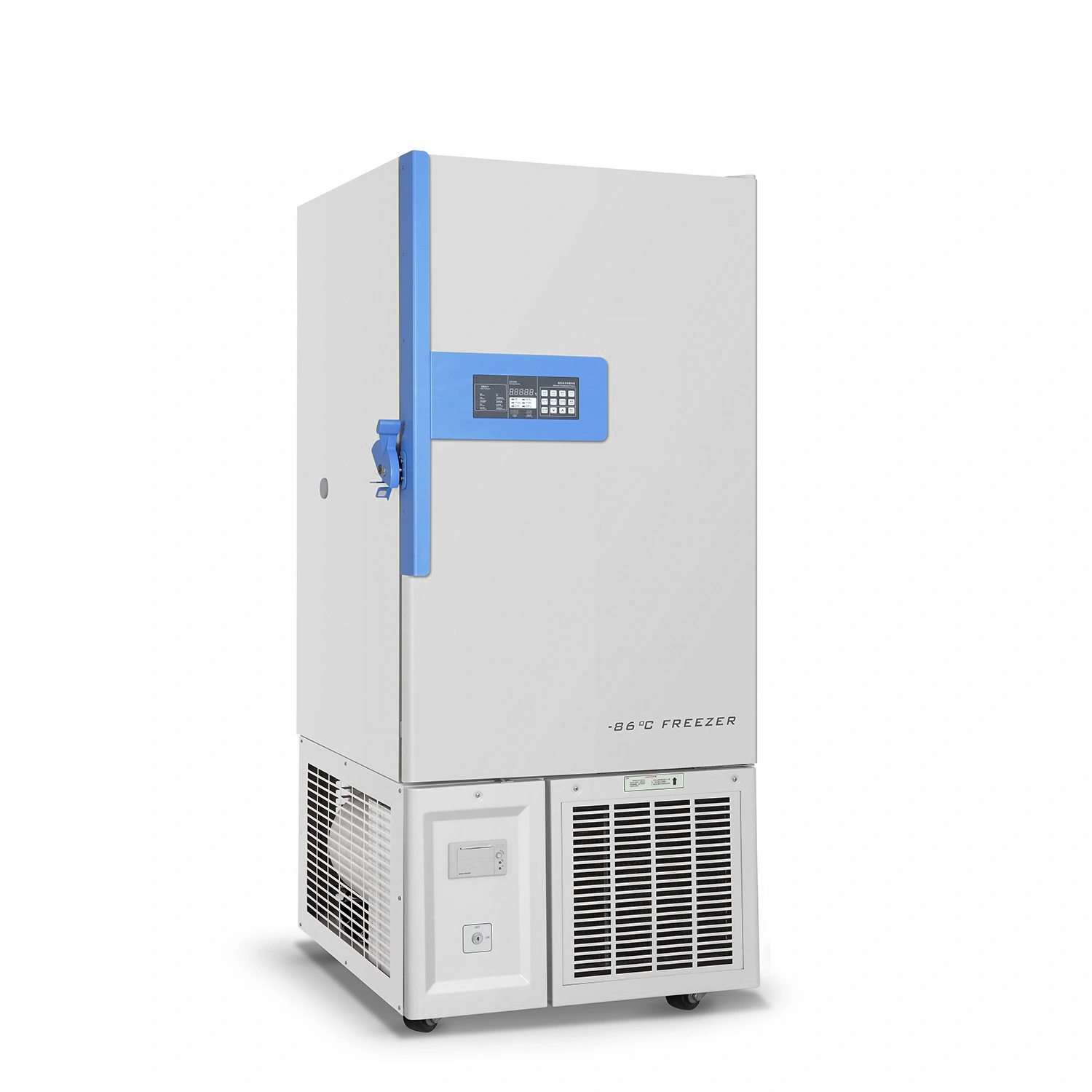

GL-U-7M Glacier Series : -86°C Ultra Low 7 cuft Freezer
Description
| General Specifications | |
| Cabinet Type | Upright |
| Capacity | 218L / 7.69 CuFt |

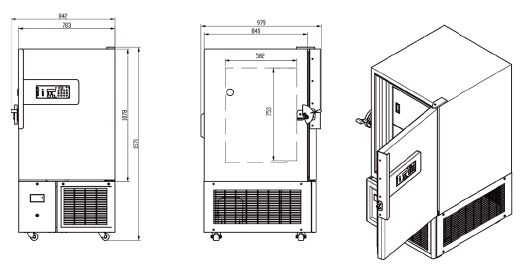

| Internal Size(W*D*H) | 470*580*767mm 18.5*22.8*30.1in |
| External Size(W*D*H) | 840*985*1568mm 33.0*38.7*61.7in |
| Package Size(W*D*H) | 1098*988*1761mm 43.2*38.8*69.3in |
| NW/GW(Kgs) | 218/235 |
| Performance | |
| Temperature Range | -40 ~ -86 °C |
| Ambient Temperature | 16 – 32°C |
| Climate Class | N |

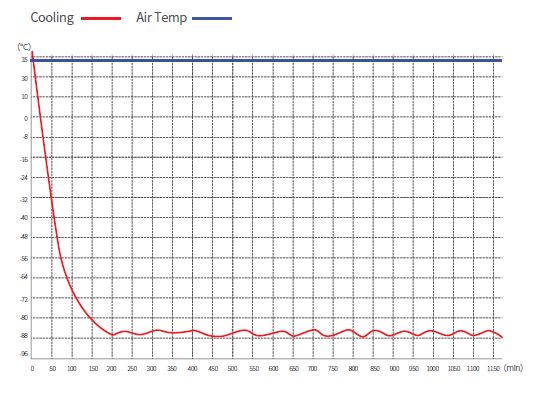

| Cooling Performance | -86 °C |
| Controller | Microprocessor |
| Display | Digital display |
| Refrigeration | |
| Compressor | 1 |
| Cooling Method | Direct cooling |
| Defrost Mode | Manual |
| Refrigerant | Mixture gas |
| Insulation Thickness(mm) | 155 |
| Construction | |
| External Material | Steel plates with spraying |
| Inner Material | Galvanized steel sheet |
| Shelves | 1 (Stainless steel) |
| Door Lock with Key | Yes |
| External Lock | Yes |
| Access Port | 1 |
| Casters | 4 |
| Data Logging/Interval/Recording Time | Printer/Record every 20 minute / 7 days |
| Backup Battery | Yes |
| Alarm | |
| Temperature | High/Low temperature,High ambient temperature |
| Electrical | Power failure , Low battery |
| System | Sensor error, System failure, Condenser cooling failure,Door ajar |
| Electrical | |
| Power Supply(V/HZ) | 110/60 |
| Power(W) | 900 |
| Rated Current(A) | 7.9 |
| Options Accessory | |
| System | Chart recorder, CO2 backup system |
